RNE-VCA-30
SOLARAVEN
84199010

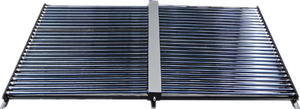

30 vacuum tube non pressure solar collector
vacuum tube non pressure solar collector is also known as all glass vacuum tube solar collector. It is a manifold solar collector non pressurized , used in large scale solar water heating projects for hotels, swimming pools, and schools.
Non pressure solar collector specialty:
1. Heating efficiency is very higher than Flat panel solar collector.
2. Quick operation.
3. Strong freezing resistance.
4. Easy installation, convenient maintenance.
5. Completely combined with building, install on wall, roof or ground etc.
Non pressure solar collector technical specification:
1. Outer manifold material: Galvanized steel 0.4mm thickness
2. Inner tank material: Stainless steel 304 2B, 0.41mm thickness
3. Insulation material: High Density Polyurethane foam
4. Frame material: Galvanized steel 1.5mm thickness
5. Seal material: Stabilized high temperature silicon
6. Vacuum tube material: borosilicate glass 3.3; AL-SS-CU absorb coating
7. Collector mounting: flat roof or inclined roof
Model | tubes Diameter (mm) | tubes Length (mm) | Absorb area (㎡) | Quantity vacuum pipe (pcs) | Quantity 20GP/40GP/40HQ (pcs) |
RNE-VCA-12 | 58 | 1800 | 1.73 | 12 | 125/250/310 |
RNE-VCA-15 | 2.16 | 15 | 109/222/271 | ||
RNE-VCA-20 | 2.85 | 20 | 81/162/198 | ||
RNE-VCA-24 | 3.41 | 24 | 71/142/173 | ||
RNE-VCA-30 | 4.25 | 30 | 57/104/127 | ||
RNE-VCA-50 | 7.08 | 50 | 26/56/68 |
Non pressure solar collector for flat roof and pitched roof:
