80D
SOLARAVEN
841990
flat plate solar hot water panel
The flat plate solar hot water panel / solar thermal panel is a type of solar thermal collector to generate hot water. This type of solar collector has a good cost / effectiveness ratio in moderate climates and adapts correctly to a large number of applications of solar thermal energy (heating of sanitary water, swimming pools heating, support for household heating, preheating industrial fluids , etc.).
The flat glazed solar hot water panel is generally used in domestic solar water heating systems or in installations. The operating temperature is generally between 30 ° C and 60 ° C. It consists of an insulated box covered by glazing. Inside, there is an absorbent in which the heat transfer fluid circulates. The glazing blocks the infrared radiation and isolates the air space above the absorber to maintain heat.
Flat solar hot water panel structure:
Flat plate solar hot water panel specification
Flat Plate Solar Collector Specification | |
Model | 80D |
Coating | High selective blue titanium or black chrome |
Welding | Laser welding |
Material of Absorber plate | Aluminum sheet 0.4mm |
Size & Quantity of head tube | coper tude,φ22*0.6mm 2PCS |
Size & Quantity of riser tube | coper tude,φ10*0.6mm 7PCS;OR φ8*0.6mm 8PCS |
Absorption rate | 95% |
Reflection rate | 7% |
Collector size | 2000×1000×80mm |
Profile material & color | Aluminum alloy,black color |
Cross area | 2.0㎡ |
Absorber area | 1.85㎡ |
glass cover material | 3.2mm low iron fabric surface tempered glass |
glass cover transmission | 90% |
Back plate material | 0.4mm stainless steel |
Insulation | 40mm glass wool |
Rated working pressure | less than 0.6MPa |

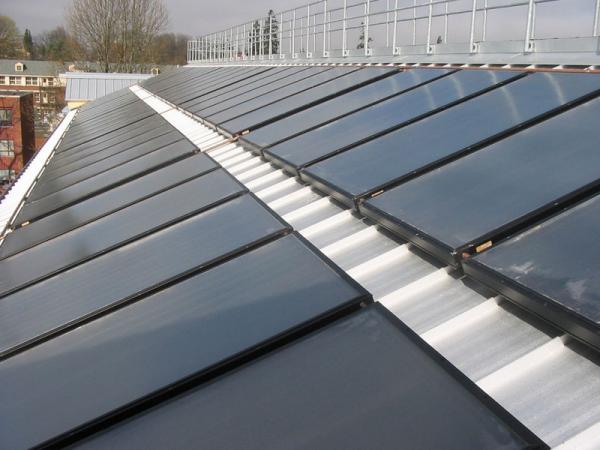

Flat plate solar hot water panel pictures:
